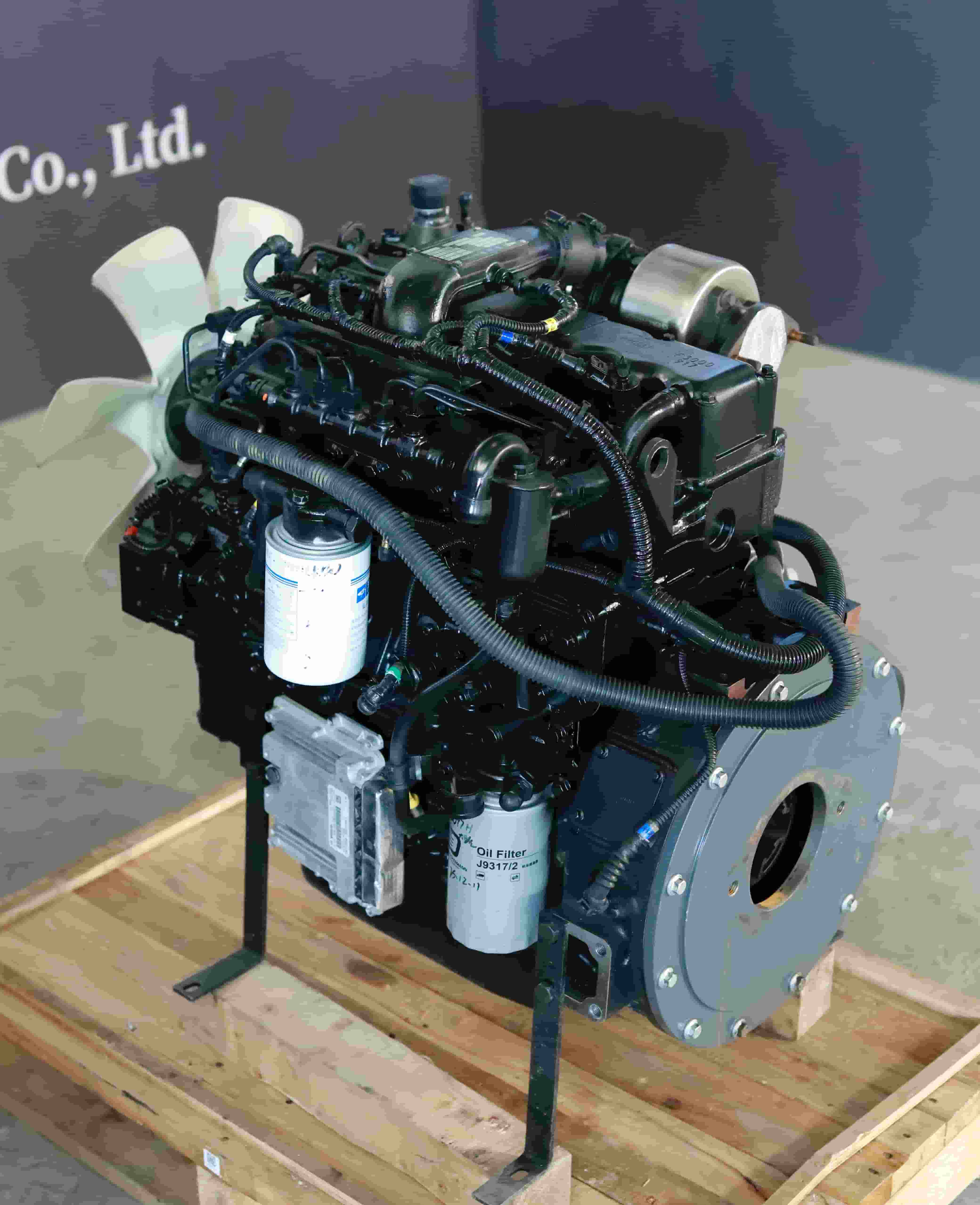

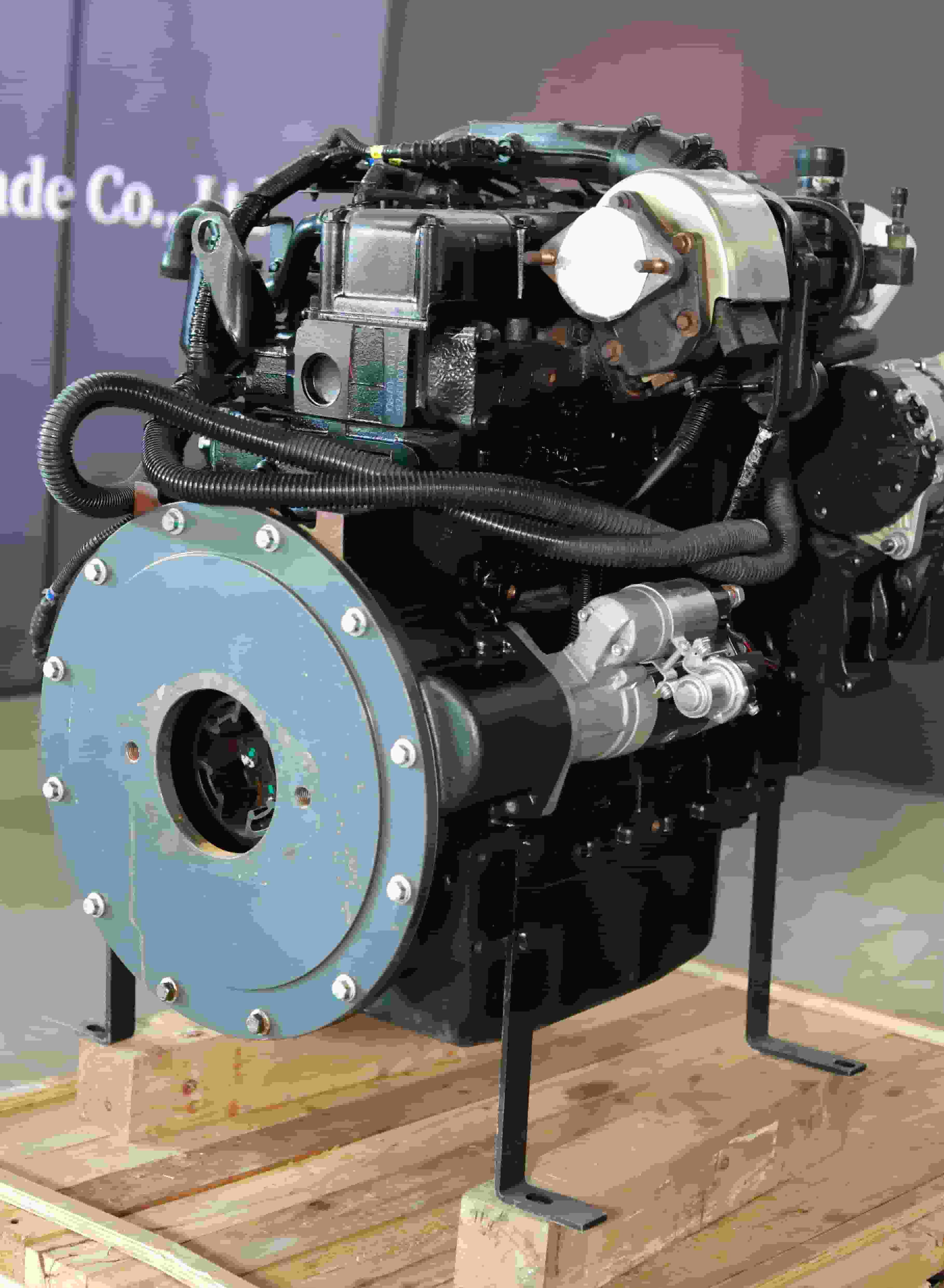

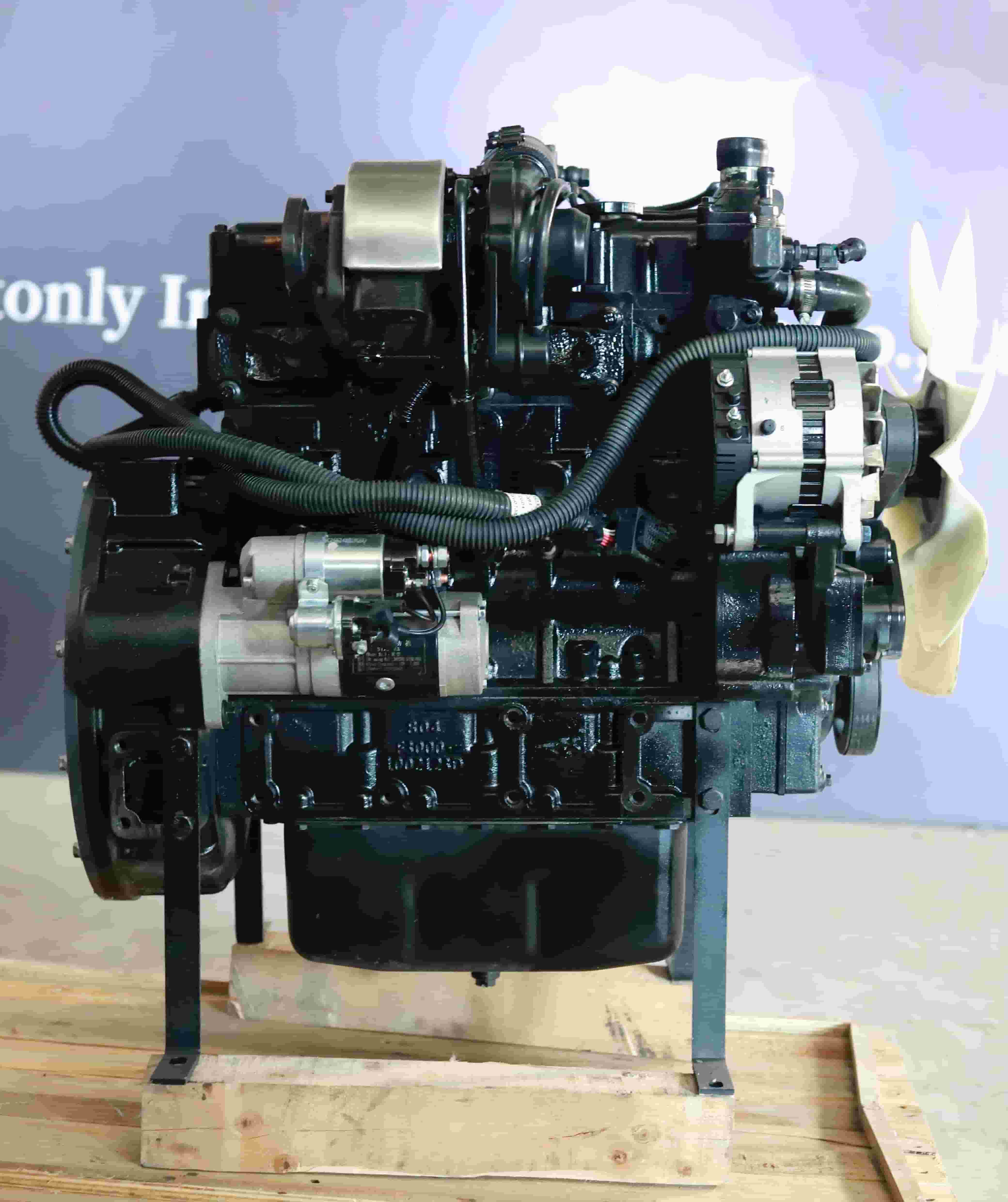

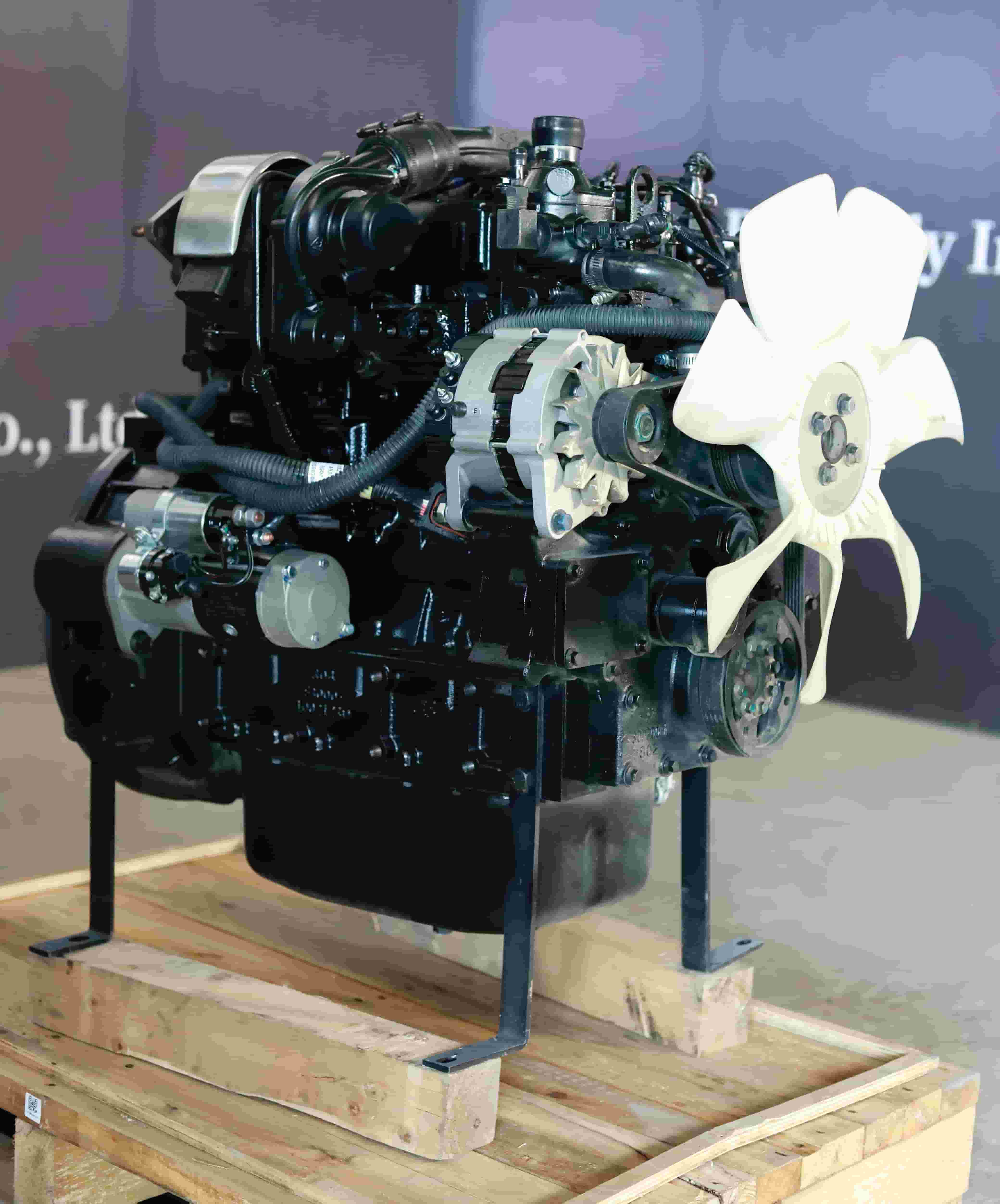

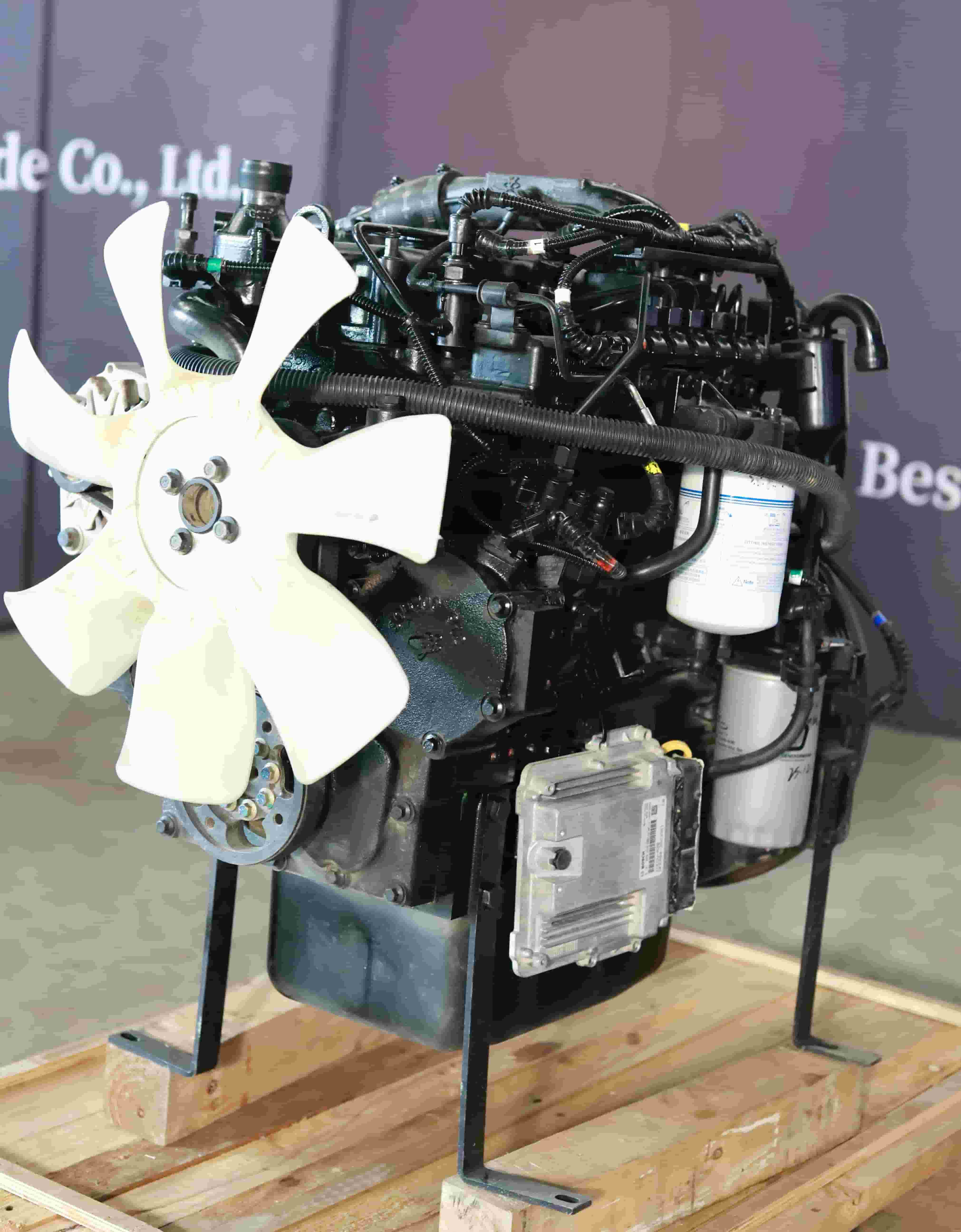

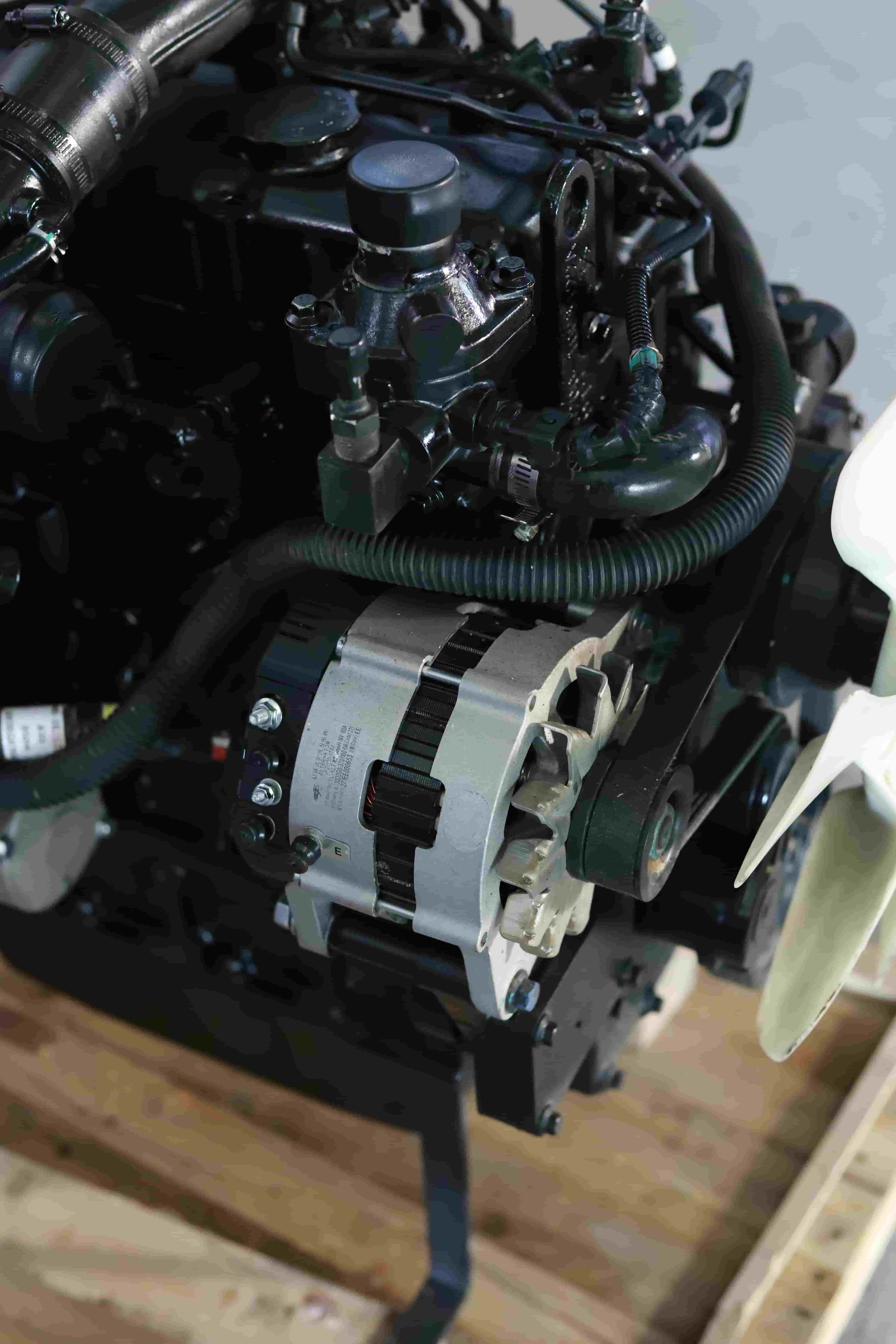

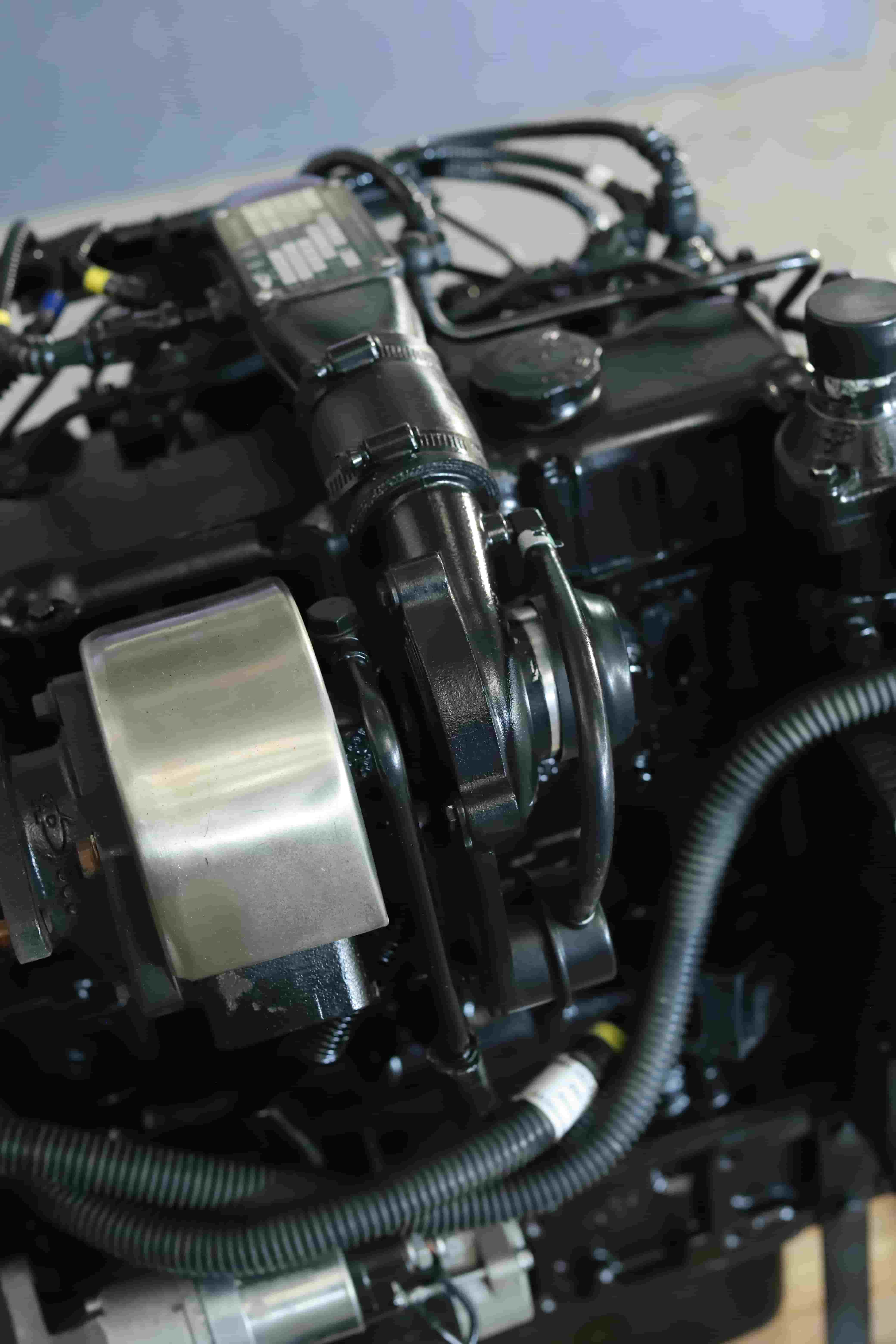

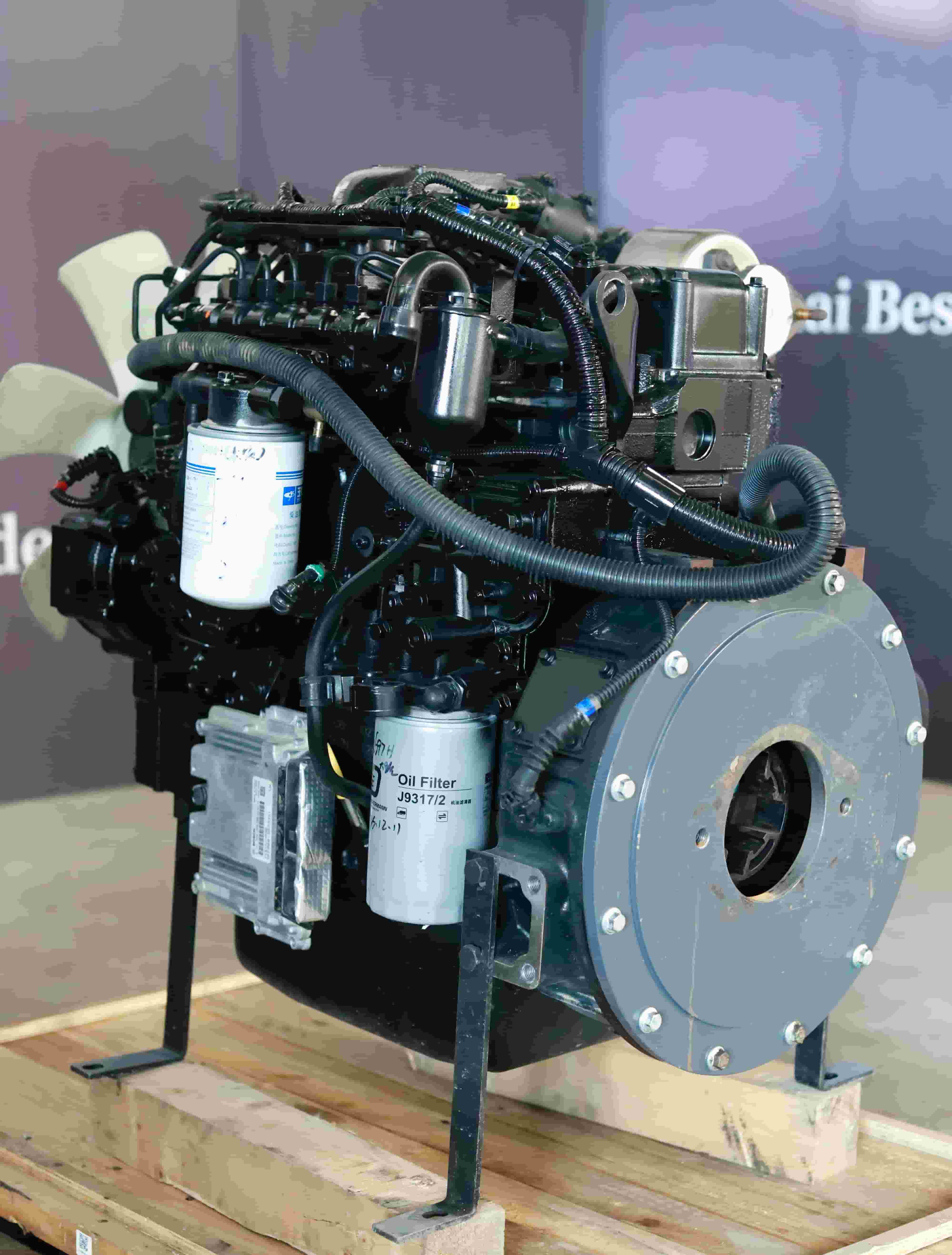

YUCHAI YCF3065-T302

Part of Yuchai's F30 compact diesel engine platform, purpose-built for the power demands of non-road mobile machinery such as aerial work platforms, mini excavators and wheel loaders.

Inquire Now Back to Products
Key Specifications
Engine Model YCF3065-T302 Platform Yuchai F30 Diesel Engine Platform
Displacement Approx. 3.0 L (In-line 4-cylinder) Rated Power 48 kW (approx. 65 hp) @ 2400 rpm
Aspiration Turbocharged Fuel System Electronically controlled high-pressure common rail (HPCR)
Emission Standard China Non-road Stage III (China III / Tier 3 equivalent)

Product Description

  • High power density — compact size, substantial output: The YCF30 series belongs to Yuchai's lightweight small-displacement engine family. The 3.0 L displacement reliably delivers 48 kW (approx. 65 hp) within a compact footprint, making it easy to install in the engine compartments of construction machinery where space is limited.
  • High reliability with intelligent control: Equipped with an ECU-based control system integrated with coolant temperature, oil pressure and speed sensors. Offers robust self-diagnosis and a fault code interface for routine maintenance and troubleshooting, while ensuring uninterrupted operation under harsh working conditions.
  • High low-end torque and fuel efficiency: Adopts electronically controlled high-pressure common rail injection for more complete combustion and excellent low-speed torque delivery. Responsive power delivery under rapidly fluctuating loads typical of construction machinery, combined with lower overall fuel consumption.

Typical Applications

Widely deployed by leading domestic OEMs such as XCMG on:

  • Telescopic / articulated boom aerial work platforms (16 m – 28 m class)
  • 8-ton class wheeled excavators
  • Small agricultural and engineering tractors
